Bridge Slotted Screen Pipe
Bridge Slotted Screen Pipe

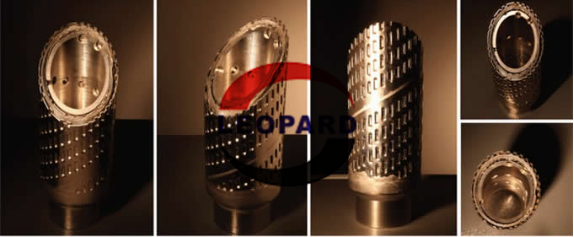

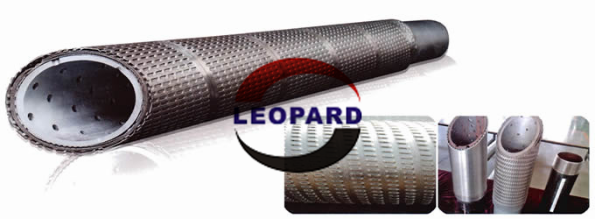

Bridge Slotted Screen Pipe is a new product which is composed of central tube, precise punched slotted screen jacket and stainless steel ring. It has characteristics such as exquisite controlled hole, high percentage of open area, strong integral strength, resistant to deformation to corrosion and high reliability etc.
Screen
API Pipe
ID (mm)
OD (mm)
SLOT (mm)
Normal size (inch)
OD (mm)
63
73
0.10-3
2-3/8”
60.3
73
85
2-7/8”
73
92
102
3-1/2”
88.9
103
127
4”
101.6
116
130
4-1/2”
114.3
129
142
5”
127
142
154
5-1/2”
139.7
172
184
0.15-3
6-5/8”
168.3
183
195
7”
177.8
220
232
8-5/8”
219.1
246
260
0.25-3
9-5/8”
244.48
276
290
10-3/4”
273.05
342
355
13-3/8”
339.7
Length of screen > 5mm*1
Length of pipe
5.8
Length of screen 4.5mm*2
9.3-9.6
Length of screen 5mm*2
11-12
