Slotted Liner
Slotted liner controlled by CNC for precise slot specifics
The slotted liner is mainly used to the water and oil reservation layer without much sand. It’s function is prevent rock bits dropping into the well bore. The working principle is allowing the certain size and coming through the surface with crude oil but keeping the bigger size sand being stopped outside to form sand bridge, and thereby achievement the anti-sand purpose. This type of product is commonly used to sand rock and carbonate reservoir, and especially useful for horizontal wells.
Slotting pattern: line slot pattern, staggered slot pattern, multiple staggered slot pattern
|
API Std. Casing API |
ID (mm) |
Length (m) |
Slot Length (mm) |
Slot No. (NO./m) |
Slot Width (mm) |
Slot Tolerance |
Valid Filter Area (cm/m) |
Max. Strength KN |
||
|
Spec (mm) |
Thickness (mm) |
Per Weight (kg/m) |
|
|
|
|
|
|
|
|
|
60.32 |
5 |
6.84 |
50.3 |
3-12 |
10-200 |
200 |
0.25-15 |
±50 |
48 |
512.54 |
|
73.02 |
5.5 |
9.15 |
62 |
|
|
240 |
|
|
57.6 |
688.55 |
|
88.9 |
6.5 |
13.22 |
75.9 |
|
|
280 |
|
|
67.2 |
995.1 |
|
101.6 |
6.5 |
15.22 |
88.6 |
|
|
300 |
|
|
72 |
1151.2 |
|
114.3 |
7 |
18.47 |
100.3 |
|
|
320 |
|
|
76.8 |
1400.4 |
|
127 |
7.52 |
22.13 |
112 |
|
|
340 |
|
|
81.6 |
1673.8 |
|
139.7 |
7.72 |
25.11 |
124.3 |
|
|
360 |
|
|
86.4 |
1900.2 |
|
|
9.17 |
29.48 |
121.4 |
|
|
360 |
|
|
86.4 |
2232.4 |
|
168.3 |
8.94 |
35.09 |
150.4 |
|
|
400 |
|
|
96 |
2672.95 |
|
177.8 |
8.05 |
33.68 |
161.7 |
|
|
440 |
|
|
105.6 |
2559.2 |
|
|
9.19 |
38.19 |
159.4 |
|
|
440 |
|
|
105.6 |
2940.7 |
Slotted Liner Laser Machinery
Windows, Windows interface. Friendly interface, easy to learn and operation; to edit the numerical control program and high readability.
Evolution of high speed algorithms
Networking
Cutting parameters database is available, at the same time to adjustment for the best cutting quality.

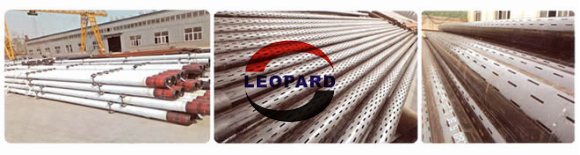

Slotted Screen Products
Slotted Screen Production Process
Product Image
