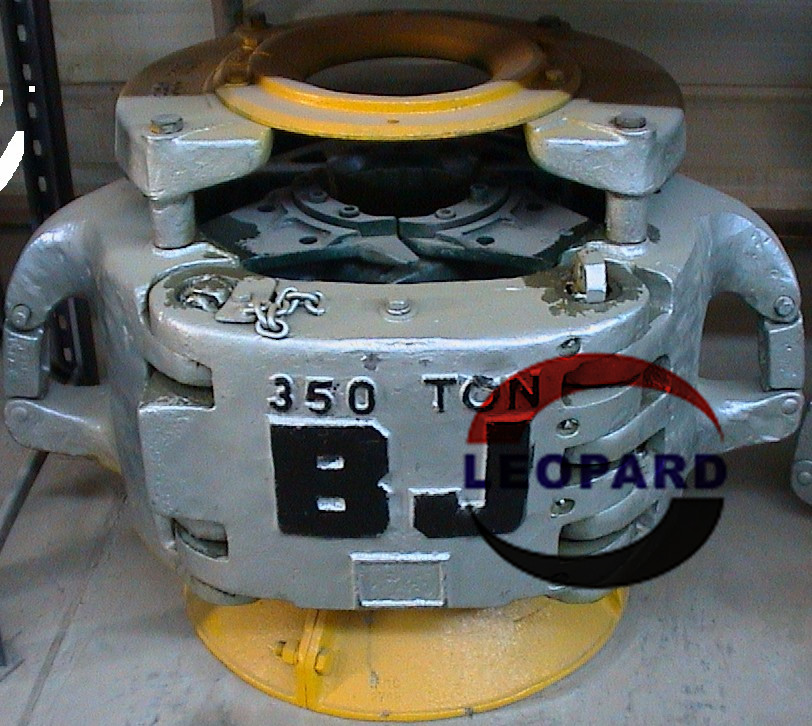

BJ 350 Ton Elevator/Spider 4-1/2" - 13-3/8" |
||||||
|
P/N |
Description |
|||||
|
Weight 3050 lb (Man,) 3500 lb (Air) |
|
|||||
|
33492 |
Body Assy. Complete Less Slip, Guide Plate & Air SupplyHose Assemblies (Air) |
|||||
|
34301 |
Body Assembly Complete Less Slip & Guide Plate Assemblies (Manual) |
|||||
|
28599 |
Casing Guide Bell Assembly 28570-1 Upper Guard Assembly |
|||||
|
27000 |
Spider Adapter Plate 27 1/2" RT |
|||||
|
31100 |
Spider Adapter Plate 37 1/2" RT (except EMSCO_) |
|||||
|
32698 |
Spider Adapter Plate 37 1/2" RT EMSCO |
|||||
|
API Pipe Sizes |
Spider Guide |
Elevator Guide |
Slip Assy. |
Insets |
Qty. |
|
|
in |
mm |
plate assy |
plate assy |
w/insets |
|
|
|
4 1/2 |
114.3 |
51949 |
51936 |
28556-8 |
24785 |
36 |
|
5 |
127 |
51950 |
51936 |
28556-4 |
24783 |
36 |
|
5 1/2 |
139.7 |
51950 |
51936 |
28556 |
16407 |
36 |
|
5 3/4 |
146.05 |
51951 |
51937-1 |
28551-10 |
29254 |
48 |
|
6 |
152.4 |
51951 |
51937-1 |
28551-8 |
24785 |
48 |
|
6 5/8 |
168.28 |
51952 |
51937 |
28551-3 |
24748 |
48 |
|
6 5/8 |
168.28 |
51952 |
51937 |
28546-8 |
25474 |
60 |
|
7 |
177.8 |
51952 |
51937 |
28551 |
16407 |
48 |
|
7 |
177.8 |
51952 |
51937 |
28546-5 |
26750 |
60 |
|
7 5/8 |
193.68 |
51953 |
51938 |
28546 |
16407 |
60 |
|
7 5/8 |
193.68 |
51953 |
51938 |
28541-8 |
25474 |
60 |
|
8 5/8 |
219.08 |
51954 |
51939 |
28541 |
15660 |
72 |
|
8 5/8 |
219.08 |
51954 |
51939 |
28536-8 |
25474 |
72 |
|
9 5/8 |
244.48 |
51955 |
51940 |
28536 |
15660 |
72 |
|
9 5/8 |
244.48 |
51955 |
51940 |
28531-11 |
33249 |
72 |
|
10 3/4 |
273.05 |
51956 |
51941 |
28531 |
15660 |
72 |
|
10 3/4 |
273.05 |
51956 |
51941 |
28526-8 |
25474 |
72 |
|
11 3/4 |
298.45 |
51957 |
51942 |
28526 |
15660 |
72 |
|
12 3/4 |
323.85 |
51958 |
28571 |
28521-5 |
32700 |
84 |
|
13 3/8 |
339.73 |
51958 |
28571 |
28521 |
15660 |
84 |
