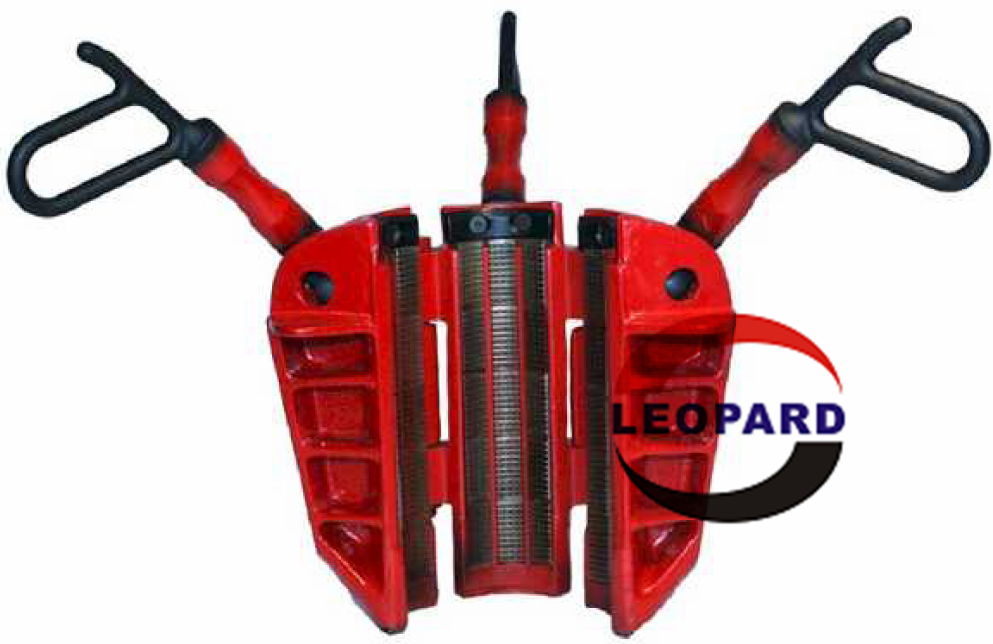

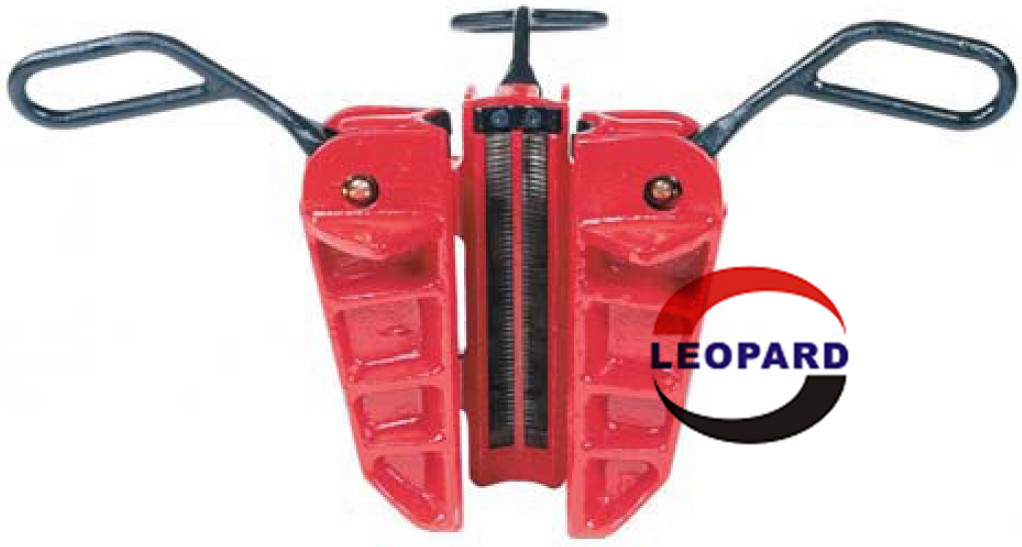

SDS,SDML,SDXL Rotary Slips
SDS, SDML, SDXL Rotary Slips are for use in API standard insert bowls. Featuring better contact and distribution of load on drill pipe thru a superior wraparound configuration and unique insert design, these slips prevent bottlenecking and gouging damage. The buttress design of the body segments provides great strength while minimizing weight for ease of handling.
A. SDS-SHORT ROTARY SLIPS& INSERTS TECHNICAL SPECIFICATIONS
SDS
Slip Body Size(in)
3 1/2"
4 1/2"
Pipe Size(in)
2 3/8"
2 7/8"
3 1/2"
3 1/2"
4"
4 1/2"
P/N: Slip w/Flex Handles &Inserts
3901
3903
3905
3907
3909
3911
Wt: Slip w/inserts. Ibs (KG)
134(61)
128(58)
124(56)
162(73)
155(70)
146(66)
Insert Set:
P/N
2160-24
2161-24
2162-24
2163-36
2164-36
2165-36
Wt.Ibs (KG)
21(9.5)
16(7)
10(4.5)
32(14.5)
25(11)
16(7)
Qty.
24
24
24
36
36
36
B．SDML-MEDIUM ROTARY SLIPS&INSERTS TECHNICAL SPECIFICATIONS
|
SDML |
|||||||||||||
|
Slip Body Size(In) |
3 1/2" |
4 1/2" |
4 1/2" |
5 1/2" |
|||||||||
|
Pipe Size(In) |
2 3/8" |
2 7/8" |
3 1/2" |
3 1/2" |
4" |
4 1/2" |
4" |
4 1/2" |
5" |
4 1/2" |
5" |
5 1/2" |
|
|
P/N: Slip W/Flex Handles& Inserts |
15524 |
15523 |
15522 |
15563 |
15564 |
15565 |
15567 |
15568 |
15569 |
15571 |
15572 |
15573 |
|
|
Wt: Slip W/Inserts(Ibs.) |
193(87.5) |
188(85) |
180(81.5) |
207(94) |
199(90) |
188(85) |
204(92.5) |
196(89) |
185(84) |
200(91) |
192(87) |
181(82) |
|
|
Insert Set: |
P/N |
2160-30 |
2161-30 |
2162-30 |
2163-45 |
2164-45 |
2165-45 |
2168-45 |
2166-45 |
2167-45 |
2168-45 |
2169-45 |
2170-45 |
|
Wt. Ibs (KG) |
26(12) |
21(9.5) |
13(6) |
39(17.5) |
31(14) |
20(9) |
39(17.5) |
31(14) |
20(9) |
39(17.5) |
31(14) |
20(9) |
|
|
Qty. |
30 |
30 |
30 |
45 |
45 |
45 |
45 |
45 |
45 |
45 |
45 |
45 |
|
|
SDXL |
||||||||||
|
Slip Body Size(in) |
4 1/2" |
5" |
5 1/2" |
|||||||
|
Pipe Size(in) |
3 1/2" |
4" |
4 1/2" |
4" |
4 1/2" |
5" |
4 1/2" |
5" |
5 1/2" |
|
|
P/N: Slip w/Flex Handles&Inserts |
15515 |
15514 |
15513 |
15518 |
15517 |
15516 |
15521 |
15520 |
15519 |
|
|
WT: Slip w/ inserts. Ibs(KG) |
229(104) |
219(99) |
205(93) |
237(107.5) |
227(103) |
213(96.5) |
234(106) |
224(101.5) |
210(95) |
|
|
Insert Set: |
P/N |
2163-54 |
2164-54 |
2165-54 |
2168-54 |
2166-54 |
2167-54 |
2168-54 |
2169-54 |
2170-54 |
|
Wt.Ibs(KG) |
47(21) |
37(17)_ |
23(10.5) |
47(21) |
37(17)_ |
23(10.5) |
47(21) |
37(17)_ |
23(10.5) |
|
|
Qty. |
54 |
54 |
54 |
54 |
54 |
54 |
54 |
54 |
54 |
|
