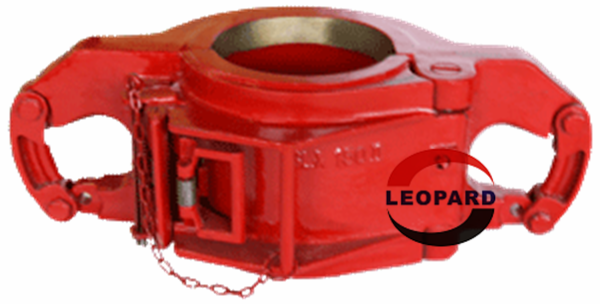

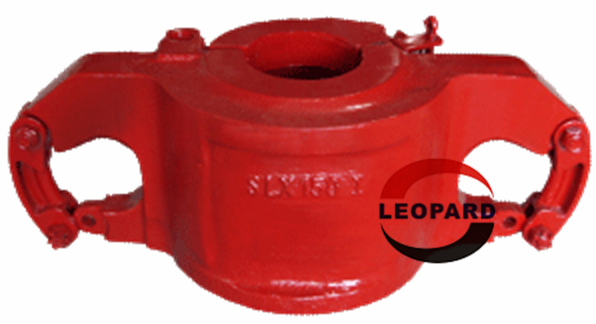

Side Door Elevator
“SLX” type elevators are a conventional side door collar type elevator for handling casing, tubing, and drill collars. There are three types ranging from 65 ton to 350 ton capacity and converting pipe sizes from 2 3/8” to 30” OD.
ype
Cap.
Size
Frame
Link Size
Weight
Min.
Max.
tons
inches
mm
inches
mm
inches
mm
lbs
kg
SLX
65
1.660" - 2 7/8"
42 - 73
33734Y
1 3/4"
44.45
21/4"
57.15
61
28
SLX
100
2 3/8" - 2 7/8"
60 - 73
33693Y
1 3/4"
44.45
23/4"
69.85
77
35
SLX
100
3 1/2" - 4"
89 - 102
33809Y
1 3/4"
44.45
23/4"
69.85
114
58
SLX
100
4 1/2" - 5 1/2"
114 - 140
33854Y
1 3/4"
44.45
23/4"
69.85
145
66
SLX
150
5 1/2" - 8 5/8"
140 - 219
31239Y
1 3/4"
44.45
31/2"
88.9
313 - 326
142-148
SLX
150
9 5/8" - 10 3/4"
245 - 273
33950Y
1 3/4"
44.45
31/2"
88.9
343 - 357
156-162
SLX
150
11 3/4" - 13 3/8"
298 - 340
33892Y
1 3/4"
44.45
31/2"
88.9
432 - 448
196-203
SLX
150
16"
406
34087Y
1 3/4"
44.45
31/2"
88.9
537
244
SLX
150
18 5/8" - 20"
473 - 508
33632Y
1 3/4"
44.45
31/2"
88.9
665 - 705
302 - 320
SLX
250
24 1/2"
622
34175Y
1 3/4"
44.45
31/2"
88.9
1208
548
SLX
350
9 5/8" - 13 3/8"
244-340
29965Y
1 3/4"
44.45
31/2"
88.9
1200
544
The SLX-series elevators handle all sizes of collar-type tubing, drill pipe and casing. The SLX has a shielded safety latch mounted on the elevator door. The shield protects the latch from accidental opening. Both latches operate from a single handle, and then automatically reach when the elevator door is closed.
