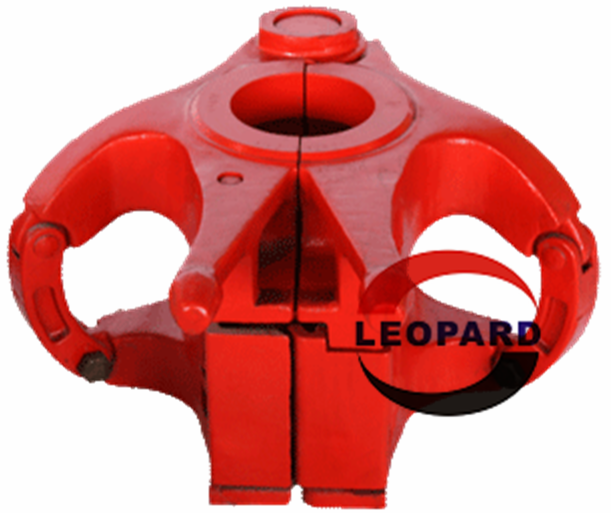

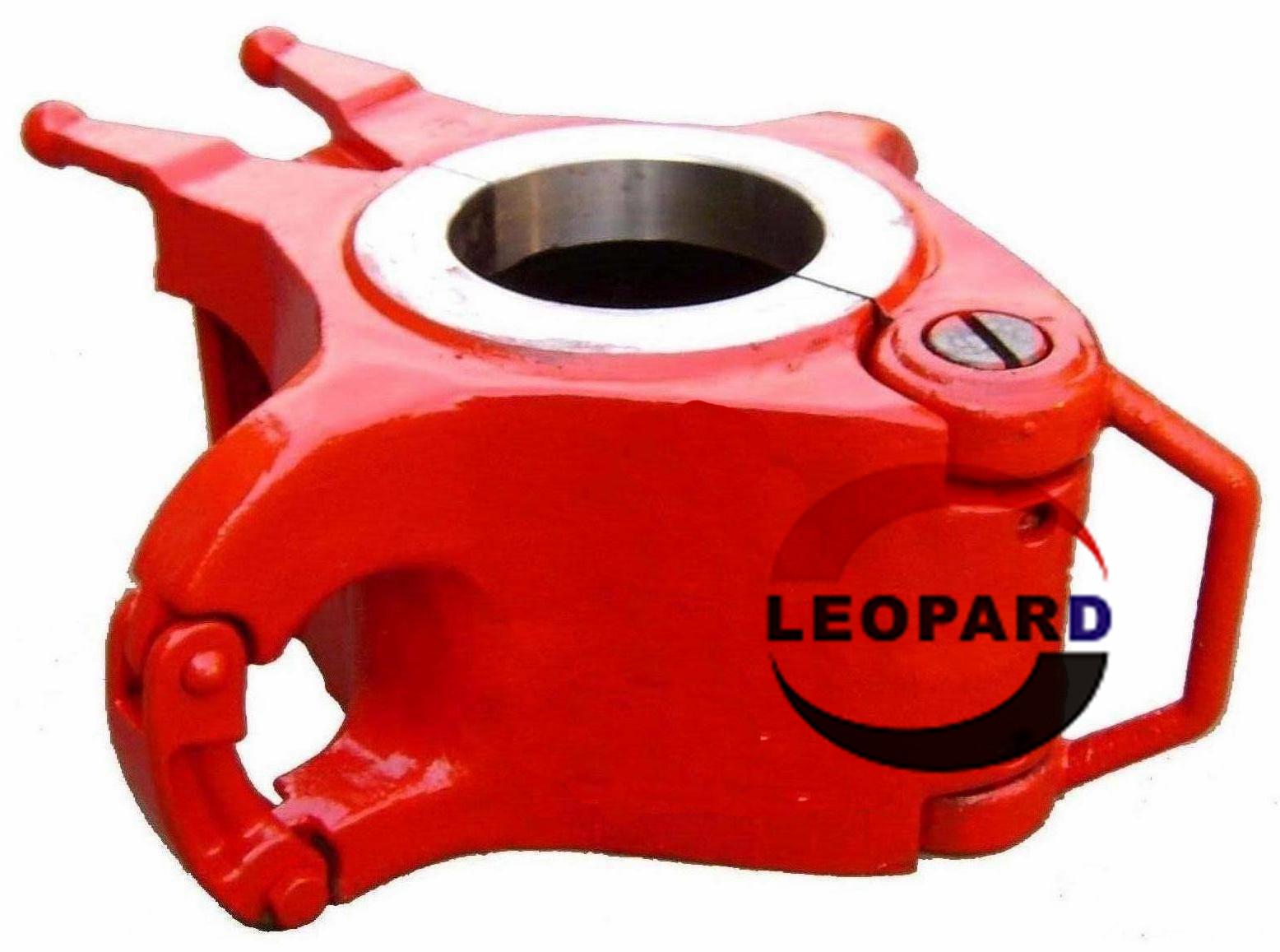

Center Latch Elevator
“TA” series elevators are conventional center latch collar type elevators for handling drill collars, casing, and tubing. There are 7 types, ranging from 35 to 150 ton capacity, covering pipe sizes from 1.050” to 111/4".
Type
Cap.
Size
Frame
Link Size
Weight
Min.
Max.
tons
inches
mm
inches
mm
inches
mm
lbs
kg
TA
35
1.050 " - 2 7/8"
28-73
32387Y
1 1/4"
32
1 3/4"
44
57
26
TA
65
1.660" - 2 7/8"
42-73
32385Y
1 3/4"
44
2 3/4"
70
101
46
TA
65
3 1/2" - 4 1/2"
89-114
32386Y
1 3/4"
44
2 3/4"
70
136
62
TA
100
2 3/8" - 5"
60-127
50006510Y
1 3/4"
44
2 3/4"
70
121
55
TA
100
4 3/4" - 8 5/8"
121-219
200000Y
1 3/4"
44
2 3/4"
70
260
118
TA
150
4 1/2" - 8 5/8"
114-219
32754Y
1 3/4"
44
3 1/2"
89
370
168
TA
150
8 1/2" - 11 1/4"
216-286
39342Y
1 3/4"
44
3 1/2"
89
524
238
Note.
Center-latch elevators are for handling collar-type drill pipe, casing and tubing. All “TA” type elevators are constructed in two halves of practically the same weight, providing proper balance and easier opening and closing. In open position, the elevator hangs ready for closing at any point below the upset of the pipe. All “TA” type elevators feature latch and safety latch lock combinations. Safety features include guarded operating handles to help prevent accidents to operators and an extra handle at the rear of the elevator for safer operation.
