G Type Elevator

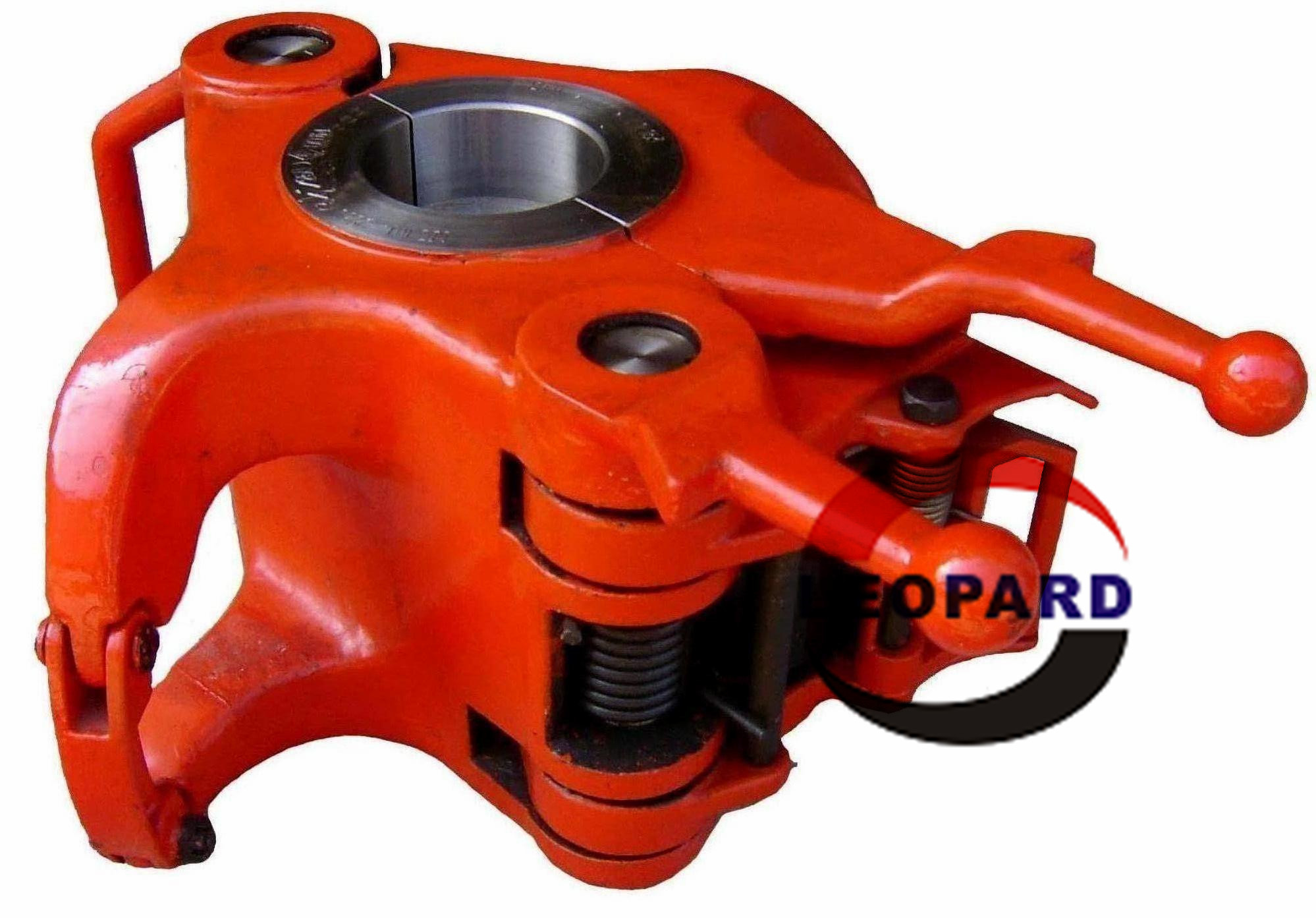

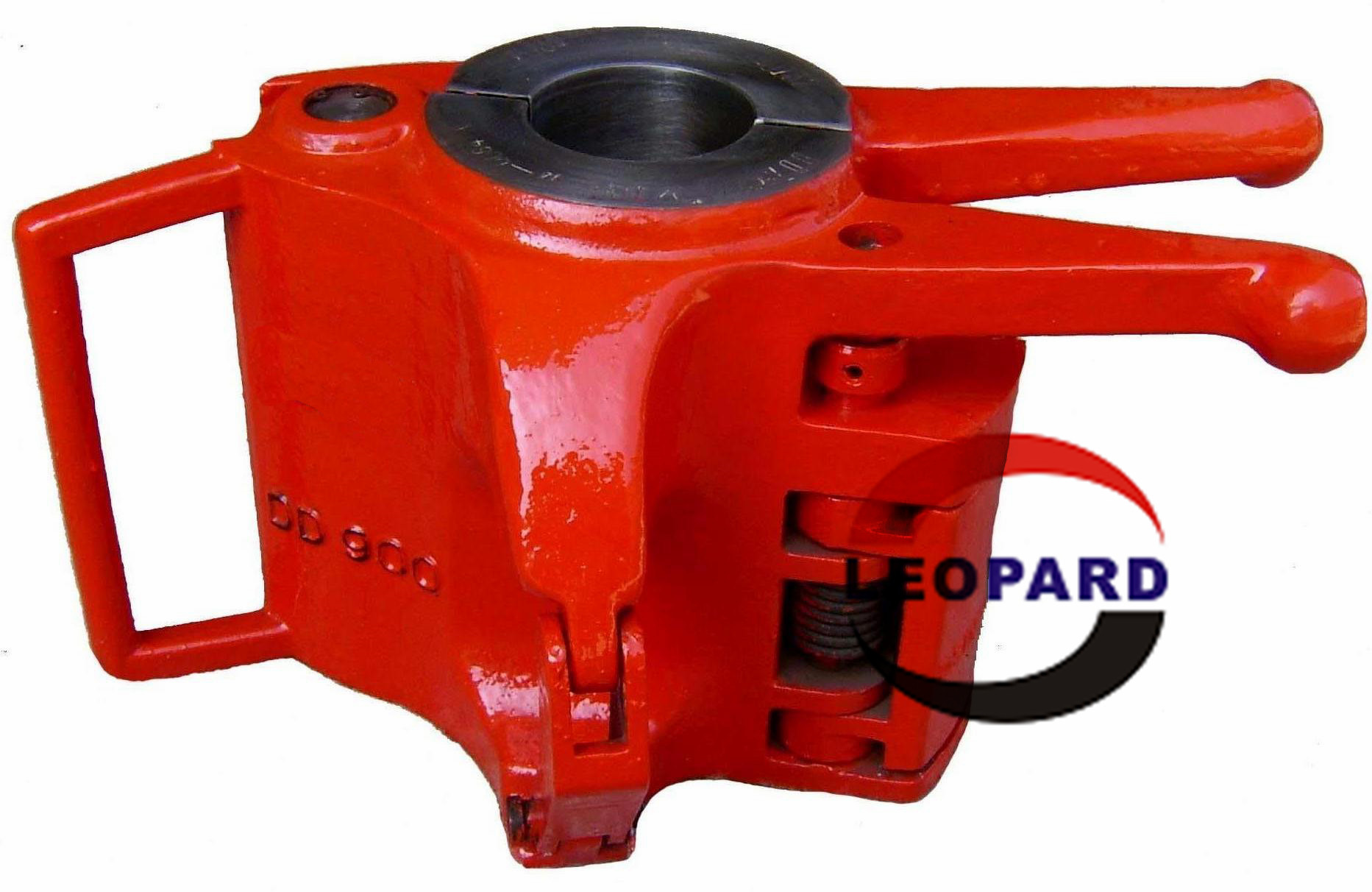

“G” type elevators are conventional center latch taper type elevators for handling drill pipe. There are 5 types ranging from 100 to 500 ton capacity and covering pipe sizes from 23/8" to 6 5/8" OD.
Type
Cap
Size
Frame
Link Size
Weight
MIN.
MAX.
tons
inches
mm
inches
mm
inches
mm
lbs
kg
MG
100
2 3/8" - 5"
60-127
30157Y
1 3/4"
44
2 3/4"
70
210-233
95-106
RGG
150
2 3/8" - 3 1/2"
60-89
200680Y
1 3/4"
44
2 3/4"
70
304
138
MGG
250
3 1/2" – 5 1/2"
89-140
35005Y
2 1/4"
57
3 1/2"
89
546-608
248-276
GG
350
4" – 5 1/2"
102-140
31068Y
2 1/4"
57
3 1/2"
89
672-693
305-314
HGG
500
4" – 6 5/8"
102-169
70013Y
2 3/4"
70
4 3/4"
121
1029
467
Note.
G series elevators are similar in design and construction to the A series, except they are bored to fit the contour of 18º type drill pipe. They are constructed in two halves of practically the same weight for better balance, making them easier to handle; easier to latch on and take off the pipe. In open position, a G-series elevator hangs ready for closing at any point below the upset of the pipe. Safety features include guarded operating handles to help prevent accidents to operators and an extra handle at the rear of the elevator for easier, safer operation.
