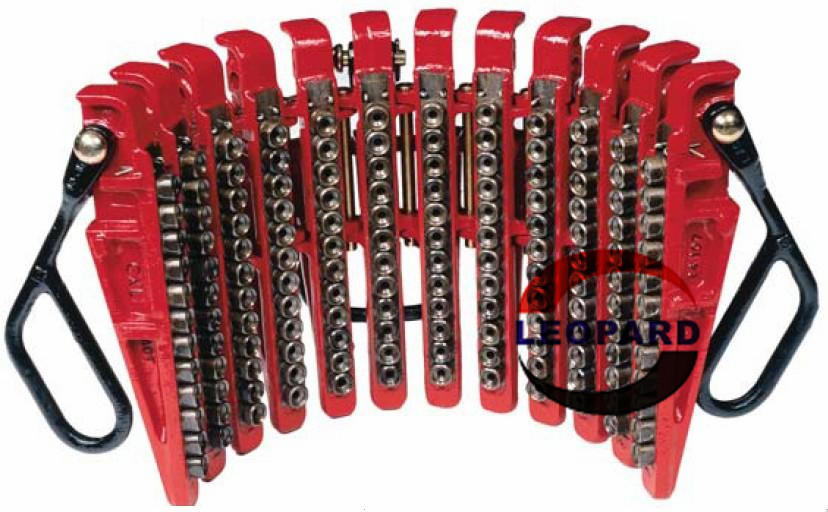

CMS-XL Casing Slip
CMS-XL slips are manufactured from castings, reinforced to take severe service. The self-centering full wraparound grip prevents damage to casing. With certain simple adjustments, the CMS-XL can accommodate casing from 65/8 " to 30" OD. All Varco BJ slips have an API taper of 4"/ft on the diameter.
CMS-XL EXTRA LONG MULTI-SEGMENT CASING SLIPS TECHNICAL SPECIFICATIONS
CMS-XL
Casing OD(in)
6 5/8"
7"
7 5/8"
8 5/8"
9 5/8"
10 3/4"
11 3/4"
P/N: Slip Complete w/safety flex Handles
5315
5301
5303
5305
5307
5309
5311
WT:Complete.Ibs(KG)
196(89)
184(84)
181(82)
181(82)
192(87)
209(95)
260(118)
Total Segments
12
12
13
13
14
15
17
CIRCULAR BUTTONS
P/N
2628-144
2619-144
2630-144
2630-156
2630-168
2630-180
2627-204
Wt.Ibs(KG)
36(16)
36(16)
24(11)
26(12)
28(13)
30(14)
51(23)
Qty.
144
144
144
156
168
180
204
CMS-XL
Casing OD(in)
13 3/8"
16"
18 5/8"
20"
24"
26"
30"
P/N: Slip Complete w/safety flex Handles
5313
5325
5333
5329
5331
5346
5342
WT:Complete.Ibs(KG)
247(113)
308(140)
367(167)
383(174)
443(201)
486(220)
546(248)
Total Segments
18
21
25
26
30
33
37
CIRCULAR BUTTONS
P/N
2630-216
2631-252
2626-300
2631-312
2631-360
2631-396
2631-444
Wt.Ibs(KG)
36(16)
43(19.5)
60(27)
52(23)
60(27)
64(29)
72(32.5)
Qty.
216
252
300
312
360
396
444
