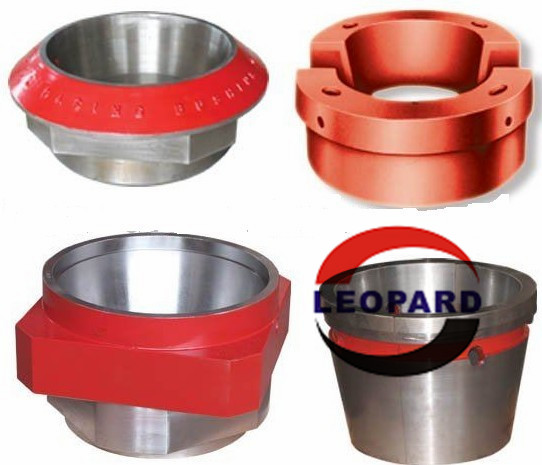

Master Bushing and Casing Bushing
MASTER BUSHINGS
Master bushings are designed for sq and pin drive Kelly bushings from sizes 17 1/2” to 37 1/2” rotary tables. The pin drive allows the use of extended insert bowls to meet flush with the top of table which means better slip support and preventing damage to drill pipe. The sq drive bushing has a 4” deep recess to be used with the sq drive Kelly bushings. Short and medium style slips are used in the sq drive for shallower depth and drilling.
TECHNICAL SPECIFICATIONS
MASTER BUSHING
MAKE
SIZE
MPCH
MSPC
MSP/MDSP
MSS
MBSS
API
17 1/2"
1006-1
1003
20 1/2"
1805-1
1007-1
1007
27 1/2"
1808-1
5429-1
1012S
EMSCO
17 1/2"
1006-1
1003
20 1/2"
1805-1
70539-4
1007-1
1006
27 1/2"
1808-1
5429-1
1010
37 1/2"
6601-2
IDECO
17 1/2"
1006-5
1002
20 1/2"
70539-1
1007-1
1007
23"
1806-1
70539-9
1008-1
1005
27 1/2"
1808-7
5429-7
1010-7
1016
37 1/2"
6601-4
OILWELL
17 1/2"
1006-1
1003
20 1/2"
1805-1
70539-4
1000
A20-1/2"
1006
27 1/2"
1808-1
5429-1
1010
37 1/2"
6601-3
NATIONAL
17 1/2"
1006-1
1004
20 1/2"
1805-1
70539-4
1007-1
1006
27 1/2"
1808-5
5429-5
1010S
1012
37 1/2"
6601-1
GARDNER
17 1/2"
1003
20 1/2"
22-1/2"
1009
27 1/2"
1808-1
1010
37 1/2"
6601-7
DENVER
CASING BUSHING & INSERT BOWL

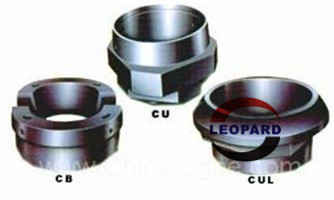

CU, CUL and CB Casing Bushings are inserted directly into the rotary table and insure that the casing being run is perfectly aligned with the center of the hole. Models CU and CUL are solid bushings and Model CB is a split bushing.
RT Size (In.)
Make
Casing Size
Casing Bushing And Insert Bowl (P/N)
Wt Lbs. (Kg)
17½-20½
ALL
11 3/4" and 13 3/8"
CU (3102)
470 (213)
9 5/8" and 10 3/4"
W/bowl No. 2 (1902)
342 (155)
26 and 27½
ALL
18 5/8" and 20"
CUL (3103)
938 (425.5)
16"
W/bowl 20x16 (3104)
562 (255)
11 3/4" and 13 3/8"
W/bowl No. 1 (3105)
846 (384)
9 5/8" and 10 3/4"
W/bowl No. 2 (1902)
342 (155)
2 3/8" and 8 5/8"
W/bowl No. 3 (1809)
464 (210.5)
27½
ALL 27½
18 5/8" and 20"
CB (6695)
713 (323)
API
16"
W/bowl 20 x 16 (6127)
572 (259)
11 3/4" and 13 3/8"
W/bowl No. 1 (6126)
895 (406)
9 5/8" and 10 3/4"
W/bowl No. 2 (6114)
252 (114)
37½-49½
NATIONAL
30"
CB (V11763)
1100 (499)
26"
CB (16454)
1100 (499)
24"
CB (11253)
1200 (544)
23"
CB (11252)
1200 (544)
18 5/8" and 20"
CB (10187)
1600 (726)
16"
W/bowl 20 x 16 (6127)
572 (259)
11 3/4" and 13 3/8"
W/bowl No. 1 (6126)
895 (406)
9 5/8" and 10 3/4"
W/bowl No. 2 (6114)
252 (114)
37½-49½
OILWELL
30"
CB (12093)
1170 (531)
26"
CB (6170-26)
1100 (500)
24"
CB (6170)
1260 (571.5)
18 5/8" and 20"
CB (10188)
1670 (759)
16"
W/bowl 20 x16 (6127)
572 (259)
11 3/4" and 13 3/8"
W/bowl No. 1 (6126)
895 (406)
9 5/8" and 10 3/4"
W/bowl No. 2 (6114)
252 (114)
37½-49½
EMSCO
30"
CB (11633)
1160 (526)
26"
CB (89183-1)
1100 (500)
24"
CB (16542)
1260 (571.5)
22"
CB (11252-22)
1120 (509)
18 5/8" and 20"
CB (11553) S/N 49
1610 (730)
16"
W/bowl 20 x16 (6127)
572 9259)
11 3/4" and 13 3/8"
W/bowl No. 1 (6126)
895 (406)
9 5/8" and 10 3/4"
W/bowl No. 2 (6114)
252 (114)
37½
IDECO
30 "
CB (12092)
1100 (499)
26"
CB (74814-26)
1452 (605)
24 1/2"
CB (74814)
1560 (650)
18 5/8" and 20"
CB ( 10189)
1670 (759)
16"
W/bowl 20 x16 (6127)
572 259)
11 3/4" and 13 3/8"
W/bowl No. 1 (6126)
895 (406)
9 5/8" and 10 3/4"
W/bowl No. 2 (6114)
252 (114)
