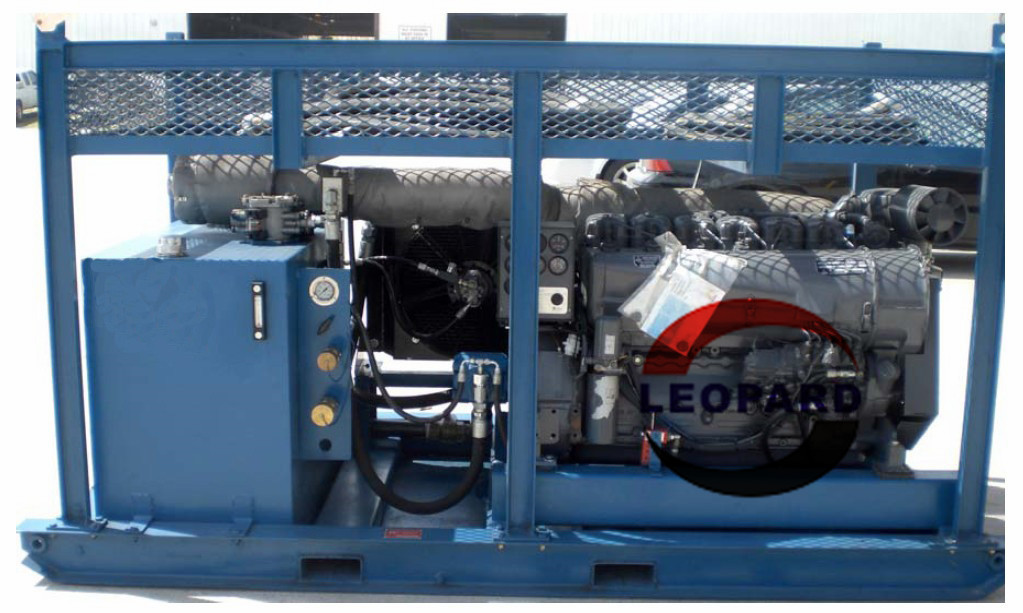

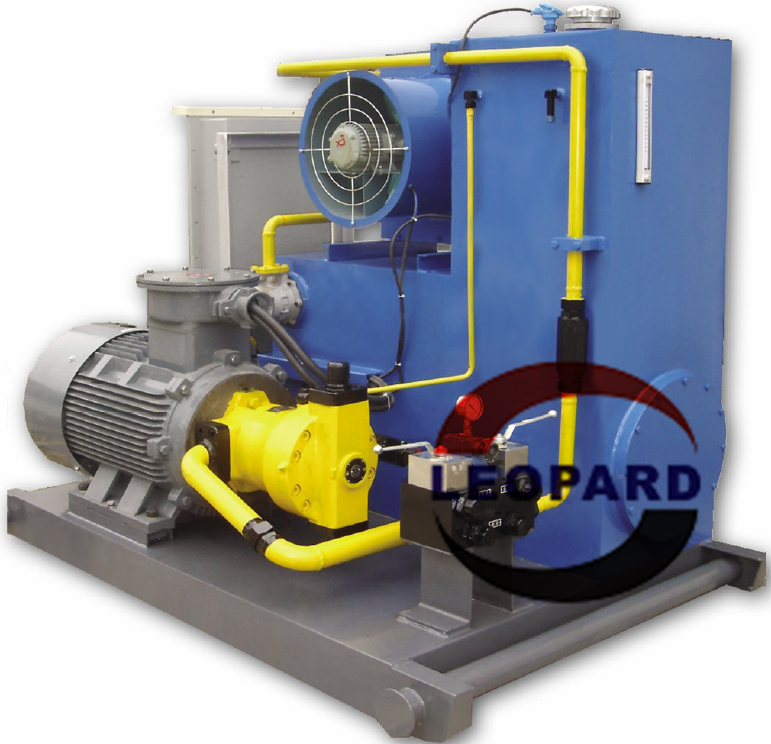

Hydraulic Power Unit
YZB and YD series of hydraulic power unit supplies hydraulic power for drill equipment in onshore and offshore, especially suitable for hot area in the desert and for continuous working situation. It features small structure, easy operation and wide adjustable range, good heating and radiating.
The option for customer(please specify before purchase):
- Driven power: 1, Explosion-proof electric motor 2, Common electric motor 3, Diesel
- Cooling type: 1, None 2, Air cooled 3 , Water cooled
- Heating type: 1, None 2, Electric
Model
YZBF-120LD
YZBF-120LD-2
YD 160-1/2
Max. pressure
mpa
21
20
20
psi
3120
2900
1900
Rated flow
L/min
120
120
120
gpm
31.7
31.7
31.7
Effective volume
L
600
900
587
gal
158.5
238
155
Drive power
kw
37
37
37
hp
49.6
49.6
50.3
Fan motor power
kw
0.37X2
0.37X2
0.37X2
hp
0.5X2
0.5X2
0.5X2
Radiation area
㎡
40
40
40
Ft2
430
430
430
Overall Dimension
L X W X H
MM
1650 x 1300 x 1600
1950 x 1450 x 1750
1700 x 1250 x 1240
IN
65 x 51x 63
77 x 57 x 69
68 x 49.2 x 49
Weight
Including Backup Tong
Kg
1600
2400
1100
lb
3527
5290
2426
