Drill Pipe Power Tong

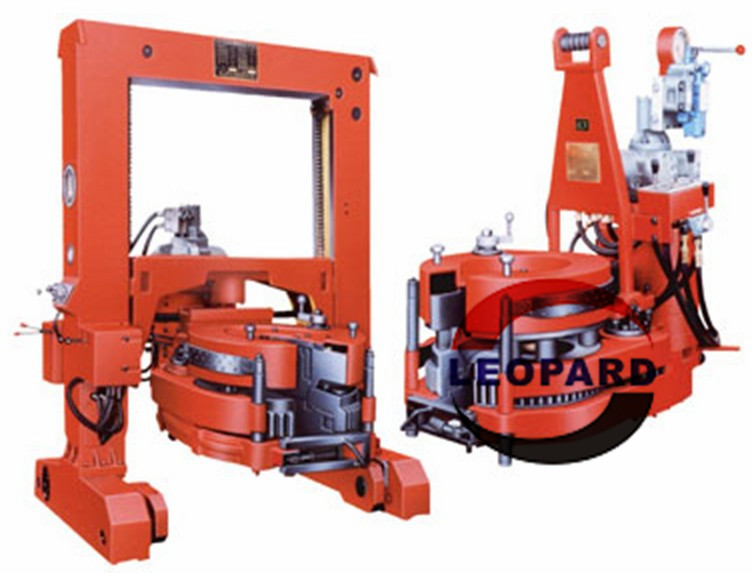

Drill Pipe power tong is an ideal well head tool for oil drilling, widely applied for making-up and breaking-out in offshore and onshore drilling operations and well servicing operations. The drill pipe tong features safety, labor-saving, and high-efficiency. Open-throat design of the ZQ series allows the tongs to escape from drilling pipe freely with high mobility. The tong is a combination of spinning tong and torque tong. It substitutes cathead, manual tong and rotary rope in making-up and breaking-out. The tongs are designed and manufactured according to industrial standard SY/T5074 and API Spec7K “Specification for Drilling Equipment”
Technical Specifications
Model
ZQ127-25
ZQ127-25 Y
ZQ162-50
ZQ203-100
ZQ203-125
ZQ162-50 II
ZQ203-100 II
ZQ203-125 II
Size range
Mm
ɸ65-127
ɸ 65-140
ɸ 85-162
ɸ 127-203
ɸ 127-203
ɸ 85-162
ɸ 127-203
ɸ 127-203
In
2 3/8-3 1/2
2 3/8-5 1/2
2 3/8-5
3 1/2- 8
3 1/2- 8
2 3/8-5
3 1/2-8
3 1/2-8
Max. torque
KN.m
25
25
50
100
125
50
100
125
Ft.lbf
18440
18440
36880
73750
92200
36880
73750
92200
Speed (H)
rpm
65
65
60
40
40
60
40
40
Speed (L)
rpm
10.5
10.5
4.1
2.7
2.7
4.1
2.7
2.7
Air pressure
Mpa
0.5-1
psi
72-144
Pressure rating
Mpa
12
16
16
16.6
20
16
16.6
20
psi
1740
2320
2320
2400
2900
2320
2400
2900
Flow rating
L/min
120
120
114
114
120
114
114
114
gpm
32
32
30
30
32
30
30
30
Shifting distance
Mm
1000
1000
1000
1500
1500
1000
1500
1500
in
39.4
39.4
39.4
59
59
39.4
59
59
Dimension: L x W x H
Mm
1110x735x815
1250x780x1000
1570x800x1190
1760x1000x1360
1785x1080x1360
1570x800x1370
1760x1000x1630
1785x1650x2050
in
44x31x32
50x31x40
62x31x41
69x39x53
70x42x53
62x31x54
69x39x64
70x42x64
Weight
Kg
620
650
1500
2400
2650
1700
2500
2750
lb
1360
1433
3310
5290
5840
3748
5510
6063
